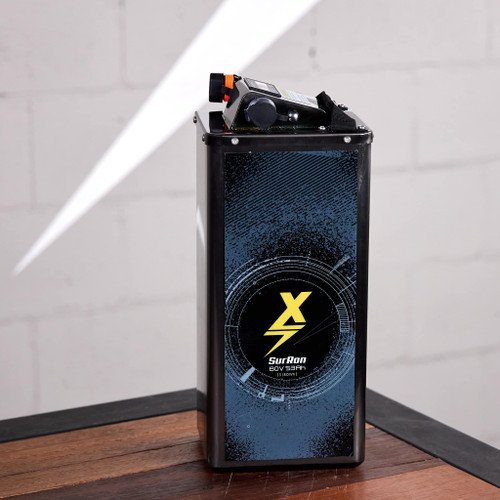

EBMX 60V53Ah Battery – Surron LBX

Description

EBMX 60V53Ah Battery – Surron LBX
The EBMX 60V 53Ah Battery is a high-performance upgrade designed for the Sur-Ron Light Bee X (LBX), offering significant enhancements in range and power
Key Specifications

Voltage: 60V (fully charged at 67.2V, empty at 48V)

Capacity: 53Ah

Energy: 3180Wh

Peak Power Output: Up to 15kW (with compatible controller)

Dimensions: Approximately 165mm x 145mm x 390mm (6.5″ x 5.7″ x 15.35″)

Weight: ~17 kg

Compatibility: Fits Sur-Ron Light Bee X and L1E models; also compatible with Segway X260/X160

Charger: Compatible with stock Sur-Ron 60V charger​

Performance & Fitment

Extended Range: Nearly doubles the range compared to the stock 60V battery.

Power Boost: Supports higher power output, especially when paired with aftermarket controllers.

Fitment: Slightly larger (12mm taller) than the OEM battery, which may cause fitment issues with some aftermarket seats.

Pricing & Availability

Price Range: Approximately $1,950 to $3,100 USD, depending on the retailer.

Availability: Some retailers currently list the battery as sold out.​

Usage Notes

Off-Road Use: High-powered setups are intended for off-road use; modifying your bike for increased power may make it illegal for road use in some jurisdictions.

Fitment Caution: Due to its slightly larger size, ensure compatibility with your bike’s setup, especially if using aftermarket seats.​

If you need assistance finding a retailer that ships to Cameroon or have further questions about compatibility and performance, feel free to ask!
Shipping is included in the price!

Do you want to nearly double the range of the stock 60V battery using the stock controller and to have all of that extra power in the same space* of your stock battery? Or do you want to run a high powered monster SurRon with up to 15kW of power!?** Well this high powered 60V battery has you covered for both occasions!

*Note: Both 60v and 72v Batteries will fit in the same space as the stock SurRon battery but are slightly larger than the stock SurRon battery. This could cause incompatibility and fitment issues with aftermarket seats. If you have any questions regarding fitment, please contact us before placing an order.

Usage Warning:

These high powered controller kits are intended for off road riding using on/off throttle, not continuous throttle applications. Modifying e motos with these controllers and tunes make them illegal to ride on the road. After installing an aftermarket controller and getting a high powered tune, you are running the risk of damaging your motor. Even with our motor temperature protection enabled, it is still possible to damage your motor if you push the motor outside of its limits. To ensure you do not cause damage to your motor, follow the advice below:

Do not use wide open throttle for longer than 10-15 seconds. Do not do repeated full throttle runs.
Do not consistently ride the bike in high power modes, only use the power mode you need at the time.
Do not ride for long distances where you are on 3/4 or full throttle consistently for long periods of time.

If you need to use your bike for long rides using consistent throttle then you will need to significantly reduce the power level of the tune to ensure you can ride for stained periods without damage. Just for comparison, the stock bike in Sport mode running at full throttle is running at 5-6kW, after you put on a BAC8000 and high powered battery you will be pushing up to 15kW (3 times the power of the stock bike) and it cannot be expected for this not to take a toll on the motor. Please be mindful and smart when modifying and riding e motos.
To ensure you have the safest and best riding experience when riding around wet areas, please ensure you follow the instructions below:


Ensure your motor controller is mounted such that the control connection plugs are at the top of the controller.



Use dielectric grease for each of your electrical connectors, especially the ones going into the motor controller. Dielectric grease is meant to be used to help keep out water, dirt and contaminates, it is not to be used to fill up connectors entirely. Please watch some YouTube videos on the proper way to use dielectric great on electrical connectors if you have any questions.



Ensure the brake sensor plugs are disconnected from the bike harness. This can be done by cutting them at the brake levers, or just opening the ignition/USB charger cover and disconnecting the two plugs. Once an aftermarket controller is installed, these brake lever sensors will not work, however if water gets into the system and they are still connected, they are able to short circuit with other pins and cause unintended acceleration and other issues.



Avoid riding in water wherever possible and do not use a hose or pressure washer anywhere near the motor controller when washing the bike.

Shipping is included in the price!
