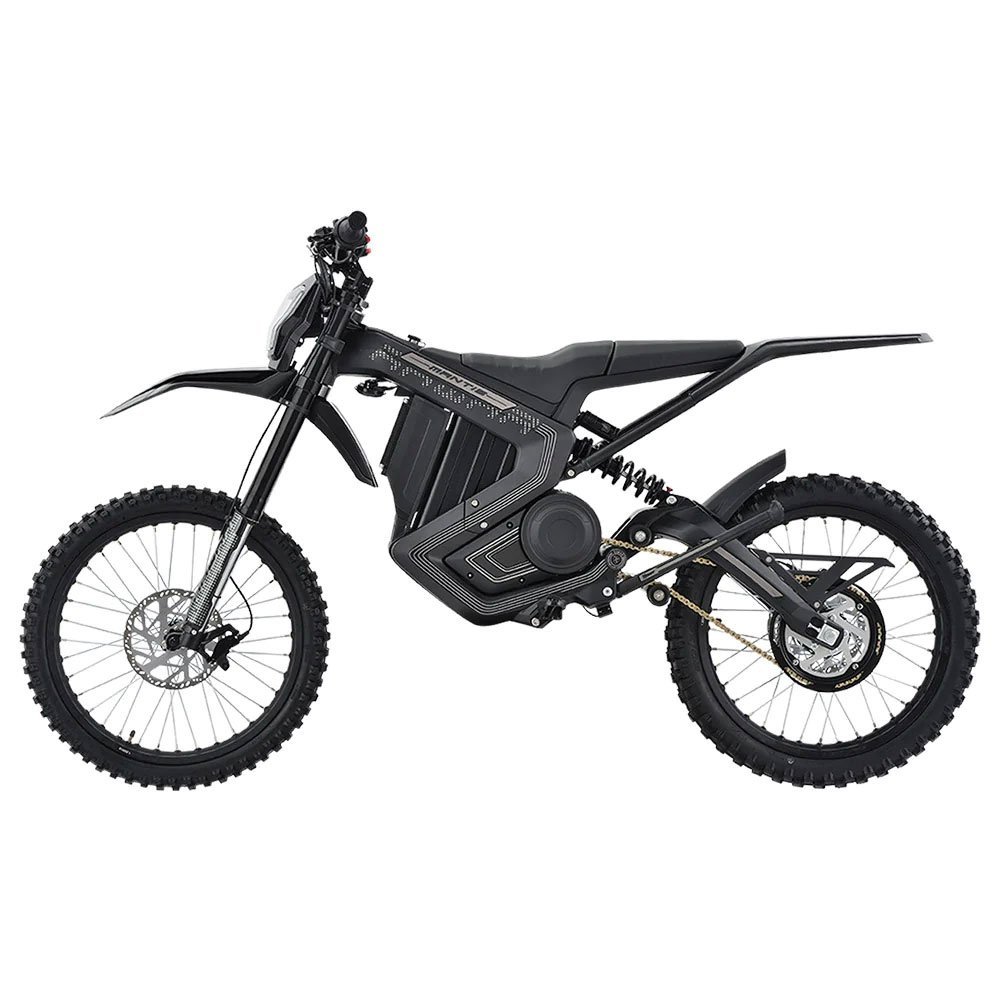

72V Mantis Mini R – Powerful 6000W Electric Dirt Bike

Compact Design. Powerful Electric Performance.

Discover the 72V Mantis Mini R Electric Dirt Bike, a compact electric off-road motorcycle designed for younger riders and newcomers who want an exciting introduction to electric dirt biking. With a high-performance electric motor, a removable 72V lithium-ion battery, and a lightweight aluminum frame, the Mantis Mini R combines responsive acceleration with a practical, rider-focused design.

Delivering up to 6,000W of peak power, this electric dirt bike offers impressive performance for its compact size. Three selectable riding modes help riders tailor power delivery to their experience and riding conditions.

The 72V Mini R features 14-inch front and 12-inch rear wheels, making it the smaller-wheel option in the RAWRR Mini R series. Its suspension, hydraulic brakes, and integrated safety features are designed to support control and confidence during recreational off-road riding.

Whether learning basic riding skills or exploring suitable dirt trails, the RAWRR Mantis Mini R brings modern electric technology to the world of compact dirt bikes.

Key Features of the 72V Mantis Mini R

1. Powerful 6,000W Peak Motor

The Mantis Mini R uses a permanent magnet synchronous motor (PMSM) with a rated output of 2,000W and peak output of up to 6,000W.

This electric powertrain delivers responsive acceleration for recreational off-road riding. Unlike a conventional petrol dirt bike, it does not require a traditional clutch or multi-speed gearbox.

2. 72V 20Ah Lithium-Ion Battery

The bike is powered by a 72V 20Ah lithium-ion battery, providing approximately 1,440Wh of nominal energy capacity.

The battery is designed to provide power for recreational trail riding, with actual range depending on rider weight, terrain, speed, temperature, selected power mode, and battery condition.

Follow the manufacturer’s charging and storage instructions, and use only the recommended charger.

3. Three Selectable Riding Modes

The 72V  Mantis Mini R offers three riding modes, allowing riders to adjust performance to suit their preferences and conditions.

Selectable power delivery can help riders approach unfamiliar terrain more comfortably. Beginners should start with a manageable setting and increase performance only as their skills develop.

4. Compact 14-Inch Front and 12-Inch Rear Wheels

The 72V Mini R configuration features a 14-inch front wheel and a 12-inch rear wheel.

Its compact dimensions and smaller wheel setup are intended to suit riders who need a smaller motorcycle fit. Check the rider’s height, inseam, strength, and ability to control the bike before choosing this model.

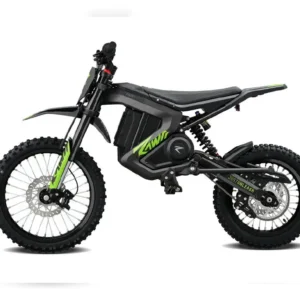

The larger Mini R17 configuration is also available in the series, with 17-inch front and 14-inch rear wheels. Confirm the selected version when ordering.

5. Lightweight 6061 Aluminum Frame

The 72V  Mantis Mini R uses a 6061 aluminum-alloy frame designed to balance structural strength and low weight.

With a manufacturer-listed weight of approximately 50 kg including the battery, the bike is designed for responsive handling in its intended riding environment.

6. Suspension for Off-Road Riding

The front suspension provides approximately 100 mm of travel in the published global specifications. The suspension system is designed to absorb smaller bumps and uneven ground while helping maintain traction and control.

Actual comfort and handling depend on rider weight, suspension setup, terrain, and maintenance.

7. Hydraulic Disc Brakes

Hydraulic disc brakes provide controlled stopping performance for off-road use. The published specifications list 203 mm front and rear brake rotors.

Inspect the brake pads, rotors, hydraulic components, and controls regularly. Always test the brakes in a safe area before riding.

8. Integrated Safety Features

Depending on the supplied configuration, the 72V Mini R series includes safety-oriented features such as a kill switch, brake-related power interruption, a kickstand sensor, and adjustable speed or power settings.

These features can support responsible riding but do not replace supervision, training, or appropriate protective equipment.

Technical Specifications

Specification	Details
Brand	RAWRR
Model	72V Mantis Mini R
Vehicle type	Electric off-road dirt bike
Motor type	Permanent magnet synchronous motor (PMSM)
Rated motor power	2,000W
Maximum peak power	Up to 6,000W
Maximum listed torque	Up to 210 Nm
Battery type	Lithium-ion
Battery voltage	72V
Battery capacity	20Ah
Nominal battery energy	1,440Wh
Riding modes	3
Maximum listed speed	Up to 75 km/h (46 mph)
Maximum listed range	Up to 60 km (31 miles in some market specifications)
Frame material	6061 aluminum alloy
Front suspension travel	Approximately 100 mm
Brakes	Hydraulic disc brakes
Front brake rotor	203 mm
Rear brake rotor	203 mm
Front wheel	14 inches
Rear wheel	12 inches
Front tire	60/100-14
Rear tire	2.75-12
Length	Approximately 1,580 mm
Width	Approximately 671 mm
Height	Approximately 960 mm
Wheelbase	Approximately 1,073 mm
Seat height	Approximately 735 mm
Ground clearance	Approximately 240 mm
Vehicle weight with battery	Approximately 50 kg
Maximum listed payload	Approximately 75 kg
Intended use	Recreational off-road riding

Specifications are based on published RAWRR Mantis Mini R information. Performance, range, weight, and equipment may vary by market and model revision. Maximum speed and range are manufacturer-listed figures, not guaranteed real-world results. Confirm the exact specification and supplied equipment before purchase.

Why Choose the 72V Mantis Mini R?

• Powerful electric performance: Up to 6,000W peak motor output.
• 72V battery system: A 20Ah lithium-ion battery designed for recreational off-road riding.
• Compact wheel configuration: 14-inch front and 12-inch rear wheels.
• Three riding modes: Adapt power delivery to rider experience and conditions.
• Lightweight aluminum frame: Designed for responsive handling.
• Hydraulic disc brakes: Front and rear braking for controlled stopping.
• Reduced routine engine maintenance: No petrol engine, exhaust system, spark plugs, or conventional combustion-engine oil changes.
• Modern safety features: Available controls and sensors help support responsible riding.

Who Is the RAWRR Mantis Mini R For?

The RAWRR Mantis Mini R is intended for younger riders and newcomers who are ready to learn off-road riding on a suitably sized electric dirt bike.

Choosing the correct size is essential. Consider the rider’s height, inseam, strength, experience, and ability to handle the motorcycle safely. The listed maximum payload is approximately 75 kg, but weight alone does not determine whether the bike is appropriate for a particular rider.

This is a powerful electric off-road motorcycle, not a conventional low-speed toy. Younger or inexperienced riders should ride only with responsible adult supervision and appropriate instruction.

Safety and Maintenance

Always wear a properly fitted helmet, goggles, gloves, boots, and suitable protective clothing. Ride only in permitted off-road areas and follow all applicable local rules.

Before every ride, inspect the brakes, tires, chain, throttle, suspension, fasteners, and battery. Use only the recommended charger and follow the manufacturer’s charging, cleaning, and storage instructions.

Avoid directing high-pressure water at the display, throttle, handlebar controls, electrical connectors, or charging port. Keep the battery and charging equipment in suitable condition.

The 72V Mantis Mini R is intended for off-road use unless the specific unit has the required road approval for your destination. Do not assume it can legally be ridden on public roads.

International Shipping from China

Your electric dirt bike is shipped from China to eligible delivery addresses in the USA and Europe. Door-to-door delivery options may be available depending on your destination, shipping carrier, and customs clearance requirements.

Please contact us before ordering to confirm shipping availability, obtain a shipping quote, and check estimated transit times. Import duties, taxes, customs fees, or other destination charges may apply and may not be included in the product price.

Order the 72V Mantis Mini R

Ready to experience powerful electric off-road riding? Explore the 72V Mantis Mini R at Electric Bike Hub and contact us to confirm the model configuration, product specifications, shipping availability, and delivery costs before ordering.
