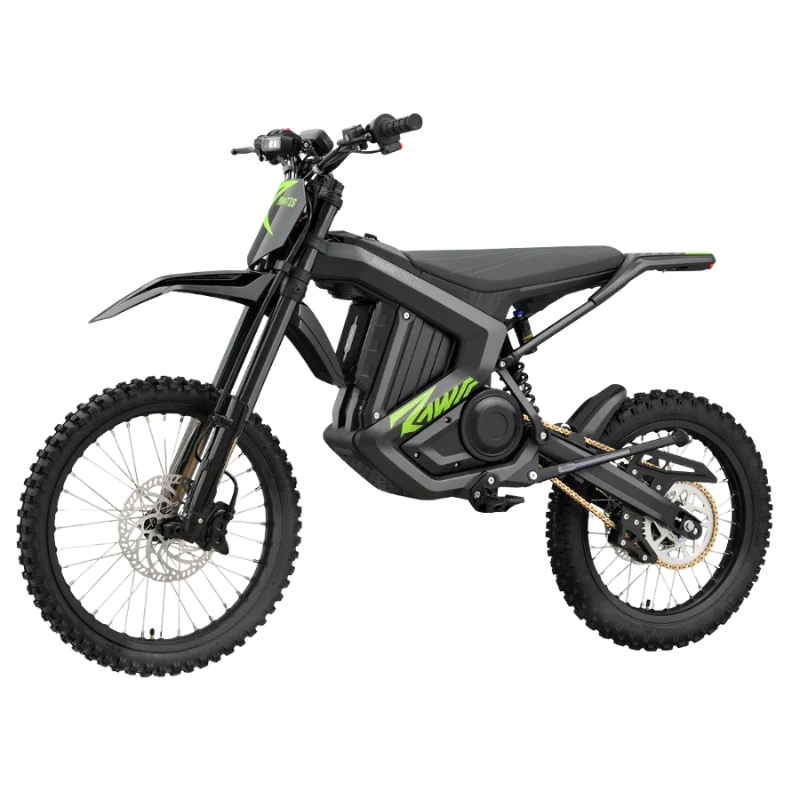

2023 RAWRR Mantis – Powerful 7500W Electric Dirt Bike

Unleash Powerful Electric Off-Road Performance

Experience the excitement of electric dirt biking with the 2023 RAWRR Mantis Electric Dirt Bike, an off-road motorcycle built for riders who want strong acceleration, responsive handling, and a modern alternative to traditional petrol-powered dirt bikes.

As the original 60V generation of the RAWRR Mantis platform, this model combines a high-output electric motor, a removable Samsung lithium-ion battery, and a forged aluminum frame. Its off-road suspension, hydraulic disc brakes, and motorcycle-style design make it suitable for recreational trail riding and other permitted off-road activities.

With up to 7,500W of listed peak motor power, the 2023 Mantis delivers an exciting riding experience while avoiding petrol, exhaust emissions at the point of use, and conventional combustion-engine maintenance.

Key Features of the 2023 RAWRR Mantis

1. Powerful 7,500W Peak Electric Motor

The RAWRR Mantis uses a permanent magnet synchronous motor (PMSM) designed to deliver responsive electric power.

With a listed rated output of 5,000W and peak output of up to 7,500W, the bike offers strong acceleration and power for off-road riding. Its electric drivetrain provides immediate throttle response without a conventional clutch or multi-speed gearbox.

The listed maximum motor torque is 45 Nm, supporting responsive acceleration and hill-climbing performance under suitable conditions.

2. Removable Samsung 60V Battery

The original Mantis is equipped with a 60V 35Ah Samsung lithium-ion battery, providing approximately 2,100Wh of nominal energy capacity.

The removable battery design offers added convenience for charging and battery handling. Always use the correct manufacturer-approved charger and follow the recommended charging and storage procedures.

Actual riding range depends on terrain, speed, rider weight, temperature, riding mode, and battery condition.

3. Impressive Off-Road Speed

The 2023 RAWRR Mantis has a manufacturer-listed top speed of up to 45 mph (approximately 72 km/h).

Actual speed varies with rider weight, terrain, battery charge, conditions, and configuration. Always choose a speed appropriate for your experience and the riding environment.

4. Forged Aluminum Frame

The Mantis features a forged aluminum frame designed to combine structural strength with relatively low weight.

Its motorcycle-inspired chassis and approximately 1,290 mm wheelbase are intended to support stability and maneuverability on suitable off-road terrain.

5. Front and Rear Suspension

The front suspension features a fork with approximately 200 mm of listed travel, while the rear shock has approximately 75 mm of shock travel.

This suspension setup is designed to help absorb uneven terrain and improve rider control over trails, dirt paths, and other off-road surfaces.

Suspension performance depends on setup, rider weight, terrain, and maintenance.

6. Hydraulic Disc Brakes

Hydraulic disc brakes provide controlled stopping performance for off-road use.

The published specifications list 203 mm front and rear brake rotors. Inspect the brake pads, rotors, hydraulic components, and controls regularly to help maintain safe braking performance.

7. Full-Size Off-Road Wheels and Tires

The original Mantis uses 19-inch-class off-road wheels, with a listed 70/100-19 front tire and 80/100-19 rear tire.

The knobby tire design is intended to provide traction on suitable dirt and trail surfaces. Tire pressure should be checked regularly and adjusted according to the manufacturer’s recommendations and riding conditions.

8. Electric Riding Convenience

Compared with a conventional petrol dirt bike, the electric Mantis eliminates routine petrol refueling, exhaust-system servicing, spark-plug replacement, and combustion-engine oil changes.

The motorcycle still requires regular inspection and maintenance of its brakes, tires, chain, suspension, electrical connections, and battery.

Technical Specifications

Specification	Details
Brand	RAWRR
Model	Mantis
Model year	2023
Generation	Original 60V model
Vehicle type	Electric all-terrain dirt bike
Motor type	Permanent magnet synchronous motor (PMSM)
Rated motor power	5,000W
Maximum peak motor power	Up to 7,500W
Maximum listed motor torque	45 Nm
Battery brand	Samsung
Battery type	Lithium-ion
Battery voltage	60V
Battery capacity	35Ah
Nominal battery energy	Approximately 2,100Wh
Battery design	Removable/swappable
Maximum listed speed	Up to 45 mph (approximately 72 km/h)
Maximum listed range	Up to 75 miles under specified Eco-mode conditions
Charging time	Approximately 3–6 hours
Motor cooling	Air-cooled
Motor controller	FOC controller
Frame	Forged aluminum alloy
Front suspension travel	Approximately 200 mm
Rear shock travel	Approximately 75 mm
Front brake	Hydraulic disc
Rear brake	Hydraulic disc
Front brake rotor	203 mm
Rear brake rotor	203 mm
Front tire	70/100-19
Rear tire	80/100-19
Overall length	Approximately 1,935 mm
Overall width	Approximately 795 mm
Overall height	Approximately 1,200 mm
Wheelbase	Approximately 1,290 mm
Seat height	Approximately 850 mm
Minimum ground clearance	Approximately 310 mm
Vehicle weight	Approximately 74 kg, including battery
Maximum listed payload	Approximately 100 kg
Intended use	Off-road riding

Specifications are based on published information for the original 2023 60V RAWRR Mantis. Confirm the exact unit and included equipment before purchase. The advertised range of up to 75 miles is a conditional manufacturer/dealer figure, not a guaranteed real-world range. The original 60V model should not be confused with later 72V Mantis versions.



Why Choose the 2023 RAWRR Mantis?

• Powerful electric performance: Up to 7,500W peak power for exciting off-road riding.
• Removable battery: A 60V 35Ah Samsung battery offers convenient charging and handling.
• Lightweight chassis: The forged aluminum frame helps balance strength and maneuverability.
• Off-road suspension: Front and rear suspension help absorb trail irregularities.
• Hydraulic braking: Front and rear disc brakes provide controlled stopping performance.
• Full-size dirt-bike wheels: Off-road tires are designed for suitable dirt and trail surfaces.
• Reduced routine engine maintenance: No petrol engine, exhaust system, or conventional combustion-engine servicing is required.

Who Is the RAWRR Mantis Designed For?

The 2023 RAWRR Mantis is designed for riders seeking a high-performance electric dirt bike for recreational off-road use. Its power output, seat height, and motorcycle-style handling make it more appropriate for riders who can safely manage a full-size off-road motorcycle.

Before ordering, consider your experience, physical fit, intended terrain, charging arrangements, and access to permitted riding areas.

Safety and Maintenance

Always wear a properly fitted helmet, goggles, gloves, boots, and suitable protective riding clothing. Beginners should receive appropriate instruction and build their skills gradually in a controlled environment.

Before riding, inspect the brakes, tires, chain, throttle, suspension, fasteners, and battery. Use only the recommended charger and avoid charging a damaged or wet battery. Follow the manufacturer’s instructions for cleaning, storage, and routine maintenance.

The 2023 Mantis is an off-road motorcycle. Do not assume it is approved for public-road use. Registration, insurance, licensing, and equipment requirements vary by country and region.

International Shipping from China

Your electric dirt bike is shipped from China to eligible delivery addresses in the USA and Europe. Door-to-door delivery options may be available depending on your destination, shipping carrier, and customs clearance requirements.

Please contact us before ordering to confirm shipping availability, obtain a shipping quote, and check estimated transit times. Import duties, taxes, customs fees, or other destination charges may apply and may not be included in the product price.

Order the 2023 RAWRR Mantis Electric Dirt Bike

Ready to experience powerful electric off-road performance? Explore the 2023 RAWRR Mantis at Electric Bike Hub and contact us to confirm the original 60V configuration, battery specifications, shipping availability, and delivery costs before placing your order.
